kportal

kportal runs many Kubernetes port-forwards from one YAML file and shows their status in a terminal UI. It reconnects dropped forwards, reloads the file when it changes, and can run without the UI.

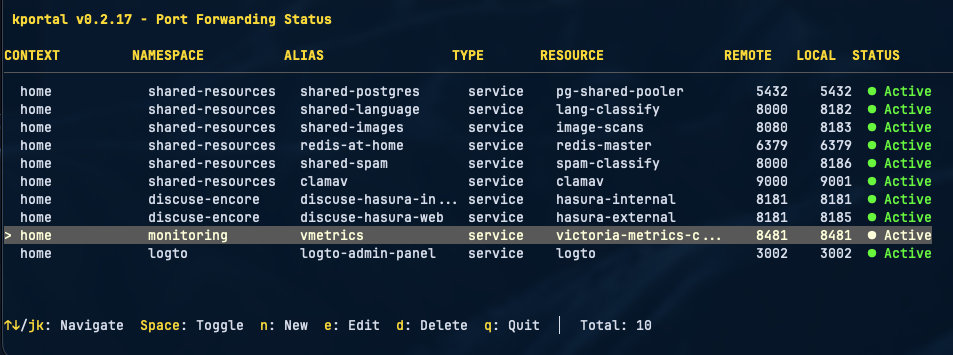

Screenshot from kportal v0.2.17. The current key bar also lists PgUp/PgDn, b (Bench) and l (Logs).

Website: https://lukaszraczylo.github.io/kportal

Contents

• Features
• Comparison
• Installation
• Quick start
• Configuration
• Usage
• Status indicators
• Advanced features
• Migration from kftray
• Signal handling
• Troubleshooting
• Development
• Telemetry
• License

Features

Area	What kportal does
Forwards	Forwards to service/<name>, pod/<name> (exact name or name prefix), or pod with a label selector. Only TCP is supported.
Terminal UI	Add (n), edit (e), delete (d) and toggle (Space) forwards without a restart. The add wizard writes the config file.
Table columns	tui.columns sets which columns the forwards table shows, their order and their width. It applies to the UI and to the -v table.
Add wizard	If the cluster does not allow listing namespaces, the wizard asks you to type the namespace.
Reconnect	Retries with exponential backoff: 1s, 2s, 4s, 8s, then 10s, with 10% jitter. It does not stop retrying.
Pod restarts	Forwards by pod prefix or selector connect to a new pod after a restart.
Health checks	tcp-dial or data-transfer check every 3s by default. A connection is stale when it is older than maxConnectionAge and idle, or idle longer than maxIdleTime.
Hot reload	The file watcher and SIGHUP reload the config. An invalid config is rejected and the previous one stays active.
Contexts	Several Kubernetes contexts and namespaces in one file. --context selects which contexts run.
Port conflicts	Startup and reload checks report a busy local port and the process that holds it.
mDNS	With mdns.enabled: true, each forward is reachable as <alias>.local. Without an alias, the resource name is used.
HTTP log	Per-forward request and response log in the UI, with detail view, filter, search, JSON formatting, gzip/deflate decoding and clipboard copy.
Header redaction	With includeHeaders: true, values of sensitive headers such as Authorization and Cookie become [REDACTED]. You cannot turn this off.
Benchmark	Press b to send HTTP requests through a forward. Reports success and failure counts, min/max/avg latency, P50/P95/P99, requests per second and status codes.
Generate	kportal generate lists services in a cluster and appends the ones you pick to the config with consecutive local ports.
Headless	-headless runs without the UI and logs to stderr. -log-format json switches the log format.
Import	-convert turns a kftray JSON file into a kportal YAML file.
Shell completion	kportal completion prints a bash, zsh or fish completion script, or installs it.
Verified installer	install.sh checks the archive SHA-256 and, if cosign is on PATH, the keyless signature of the checksums file.
Updates	-update checks for a newer release. -version prints the version.

Comparison with other tools

Compared on 2026-10-02 against each project's README and docs. Check their repositories for changes. The kportal column comes from this repository's code. "Not documented" means the project's README and docs do not say.

Feature	kportal	kubectl port-forward	k9s	kubefwd	kftray
Many forwards in one config file	Yes	No	Partial (annotations configure forwards; no forward list file)	Partial (example.fwdconf.yml exists)	Yes
Automatic reconnect	Yes	Not documented	Not documented	Yes	Yes
Follows pod restarts by label or name prefix	Yes	Not documented	Not documented	Yes (label filter)	Yes
Terminal UI of all forwards	Yes	No	Yes (PortForward view, alias pf; forwards last for the session)	Yes	Yes
GUI	No	No	No	No	Yes
Config hot reload	Yes (file watcher, SIGHUP)	No	Partial (benchmarks.yaml only)	Not documented	Not documented
HTTP request and response logging	Yes	No	Not documented	Not documented	Yes
Health checks	Yes (tcp-dial, data-transfer)	Not documented	Not documented	Not documented	Partial (README says it tracks pod health)
mDNS or friendly hostnames	Yes (mDNS)	No	No	Partial (edits /etc/hosts, not mDNS; needs root)	Not documented
Built-in benchmark	Yes	No	Yes (hey, key b)	Not documented	Not documented
Imports another tool's config	Yes (kftray JSON)	No	No	Not documented	Partial (JSON, GitHub repos, service annotations; not other tools' formats)
Several contexts in one config	Yes	No	Partial	Partial	Not documented
Local port conflict detection	Yes (reports the holding process)	Partial (:remotePort picks a free port)	Not documented	Yes	Not documented
Platforms	Linux, macOS, Windows	Not documented	macOS, Linux, Windows	macOS, Linux, Windows	macOS, Linux, Windows
Licence	MIT	Not documented	Apache-2.0	Apache-2.0	GPL-3.0
Language	Go	Not documented	Go	Go	Rust (Tauri, Ratatui)
Latest release (2026-10-02)	Releases	Not documented	v0.51.0 (2026-06-06)	v1.25.16 (2026-06-20)	v0.29.2 (2026-09-29)

When another tool fits better:

• kubectl port-forward for a one-off forward. It needs no config file and ships with kubectl.
• k9s for general cluster browsing and its built-in benchmark.
• kubefwd to forward every service in a namespace with local DNS names.
• kftray for a tray GUI, shared JSON configs and UDP.

Kube Forwarder is a GUI-only forwarder. Its last release was 2019-08-14.

Sources:

• kubectl: Use Port Forwarding to Access Applications in a Cluster
• k9s: https://github.com/derailed/k9s and https://k9scli.io/topics/bench/
• kubefwd: https://github.com/txn2/kubefwd
• kftray: https://github.com/hcavarsan/kftray

Installation

Homebrew (macOS)

brew install --cask lukaszraczylo/taps/kportal

If you installed the formula (brew install lukaszraczylo/taps/kportal) earlier, run brew uninstall kportal first.

Quick install

curl -fsSL https://raw.githubusercontent.com/lukaszraczylo/kportal/main/install.sh | bash

The script downloads kportal-<version>-checksums.txt from the same release and verifies the archive SHA-256. If cosign is on PATH, it also verifies the keyless signature of the checksums file.

Variable	Effect
DRY_RUN=1	Download and verify only. Do not install.
SKIP_COSIGN=1	Skip the cosign check. The SHA-256 check still runs.
INSTALL_DIR	Target directory. Default /usr/local/bin.
KPORTAL_VERSION	Install a specific version, for example 1.2.3, instead of the latest.
COSIGN_CERT_IDENTITY_REGEXP	Certificate identity to accept. Set it if you fork the release pipeline.

Example:

curl -fsSL https://raw.githubusercontent.com/lukaszraczylo/kportal/main/install.sh | DRY_RUN=1 bash

Manual download

The releases page has archives for Linux, macOS and Windows on amd64 and arm64. Archives are named kportal-<version>-<os>-<arch>.tar.gz, and .zip on Windows. Each release also has a kportal-<version>-checksums.txt file.

Build from source

Go 1.26 or later is required (see go.mod).

git clone https://github.com/lukaszraczylo/kportal.git
cd kportal
make build && make install

make install copies the binary to /opt/homebrew/bin if that directory exists, otherwise to ~/.local/bin on macOS and Linux.

Verifying release signatures

Release checksums are signed with cosign using keyless signing. Download the checksums file and its sigstore bundle from the release, then run:

cosign verify-blob \
  --certificate-identity-regexp "^https://github\.com/lukaszraczylo/shared-actions/\.github/workflows/go-release\.yaml@refs/heads/main$" \
  --certificate-oidc-issuer "https://token.actions.githubusercontent.com" \
  --bundle "kportal-<version>-checksums.txt.sigstore.json" \
  kportal-<version>-checksums.txt

Replace <version> with the release version, for example 1.2.3. Then check the archive against the verified checksums file with shasum -a 256 or sha256sum.

Quick start

Create .kportal.yaml:

contexts:
  - name: production
    namespaces:
      - name: backend
        forwards:
          - resource: service/postgres
            protocol: tcp
            port: 5432
            localPort: 5432
            alias: prod-db

          - resource: service/api
            protocol: tcp
            port: 8080
            localPort: 8080
            alias: api
            httpLog: true

Each name under contexts must exist in your kubeconfig. List them with kubectl config get-contexts.

Run:

kportal

Keyboard controls

Forwards list:

Key	Action
Up Down / j k	Move the selection
PgUp PgDn / Ctrl+u Ctrl+d	Move by 10 rows
Space / Enter	Toggle the forward
n	Add a forward
e	Edit the forward
d	Delete the forward (asks to confirm)
b	Benchmark the forward
l	Open the HTTP log
q / Ctrl+c	Quit

In the add and edit wizard, h on the confirmation step toggles httpLog. Advanced httpLog keys you set in YAML stay unchanged.

HTTP log keys are listed under HTTP traffic logging.

Configuration

Basic structure

contexts:
  - name: <context-name>
    namespaces:
      - name: <namespace-name>
        forwards:
          - resource: <type>/<name>
            protocol: tcp
            port: <remote-port>
            localPort: <local-port>
            alias: <display-name>      # optional
            selector: <label-selector> # optional
            httpLog: true              # optional

Forward options

Field	Required	Description
resource	Yes	service/<name>, pod/<name>, or pod with selector
protocol	No	tcp. No other value is accepted.
port	Yes	Remote port
localPort	Yes	Local port
alias	No	Display name and mDNS hostname
selector	With bare pod	Label selector. Not allowed with pod/<name>.
httpLog	No	true, or a map of options (see HTTP traffic logging)

Resource formats

Format	Description
service/name	Forward to a service
pod/name	Forward to a pod by exact name, or by name prefix
pod with selector	Forward to a pod picked by label selector

Valid resource types are pod and service. To reach a deployment, use pod with a selector.

Health checks and reliability

healthCheck:
  interval: "3s"
  timeout: "2s"
  method: "data-transfer"  # or tcp-dial
  maxConnectionAge: "25m"
  maxIdleTime: "10m"

reliability:
  tcpKeepalive: "30s"
  dialTimeout: "30s"
  retryOnStale: true
  watchdogPeriod: "30s"

The values above are the defaults from .kportal.yaml.

• tcp-dial opens a TCP connection to the local port.
• data-transfer also tries to read data through the tunnel. It is the default.
• A connection past maxConnectionAge reconnects only when it is also idle, so a running transfer is not cut.
• watchdogPeriod is the interval of the check for hung workers.

mDNS

mdns:
  enabled: true

contexts:
  - name: production
    namespaces:
      - name: default
        forwards:
          - resource: service/postgres
            port: 5432
            localPort: 5432
            alias: prod-db   # reachable as prod-db.local:5432

• alias: prod-db publishes prod-db.local.
• Without an alias, service/redis publishes redis.local.
• A bare pod with a selector and no alias is not published.
• Services register as _kportal._tcp.

Check registration:

dns-sd -B _kportal._tcp local       # macOS
avahi-browse -t _kportal._tcp       # Linux

Table columns

tui:
  columns:
    - name: alias
      width: 30      # optional, 1-200
    - name: resource
    - name: local
    - name: status

• Valid names: context, namespace, alias, type, resource, remote, local, status.
• List order is render order. Unlisted columns are hidden.
• width is the maximum text width, 1 to 200. Without it, the column keeps its default width.
• Without tui, the table keeps its default columns and order.
• The setting applies to the UI and to the -v table, and reloads with the file.

Usage

Command line

Command or flag	Effect
kportal	Start the terminal UI.
-c <file>	Config file. Default .kportal.yaml.
-v	Verbose logging. In headless mode it sets the log level only.
-headless	No UI. Logs go to stderr.
-check	Validate the config and exit.
-context <name>	Forward only the named contexts. Repeatable and comma-separated.
-log-format text|json	Log format. Default text.
-convert <file>	Convert a kftray JSON file to kportal YAML.
-convert-output <file>	Output of -convert. Default .kportal.yaml.
-update	Check for updates and exit.
-version	Print the version and exit.
kportal generate	Add forwards from a cluster.
kportal completion	Print or install a shell completion script.

Each flag also accepts the double-dash form, for example --check.

Interactive mode

kportal

Verbose mode

kportal -v

Without -headless, -v prints a plain-text table that redraws. The table uses the same status words as the UI. When stdout is not a terminal, it draws ✓ Active, ⋯ Starting, ↻ Reconnecting and ✗ Error.

Headless mode

kportal -headless
kportal -headless -v 2>kportal.log &
kportal -headless -log-format json

Headless mode logs to stderr, so you can redirect it to a file or the systemd journal. -v sets the log level, not the destination.

Validate configuration

kportal -check

Custom config file

kportal -c /path/to/config.yaml

Select contexts

By default kportal forwards every context in the file. --context limits the run to the contexts you name:

kportal --context development-team-a
kportal --context team-a --context team-b
kportal --context team-a,team-b

An unknown name is an error that lists the contexts in the file. Those are the contexts[].name values in .kportal.yaml, not every context in your kubeconfig.

Local-port conflicts are only reported between forwards that can run together. With --context, contexts you never select together can reuse a localPort:

contexts:
  - name: development-team-a
    namespaces:
      - name: rate-service
        forwards:
          - &rate-service
            resource: pod/rpc-server
            protocol: tcp
            port: 50051
            localPort: 3004
            alias: rate-service

  - name: development-team-b
    namespaces:
      - name: rate-service
        forwards:
          - <<: *rate-service   # same local port, no conflict

Without --context, or with both contexts named, the duplicate port is an error.

Generate

kportal generate --context=my-cluster
kportal generate --context=my-cluster --config=/path/to/.kportal.yaml
kportal generate --context=my-cluster --dry-run

Flag	Description
--context	Required. Kubernetes context to scan.
--config	Config file to append to. Default .kportal.yaml.
--dry-run	Print the planned forwards. Do not change the config.

Steps:

1. Namespaces: select with space, toggle all with a, filter with /.
2. Services: same keys. Services already in the config are locked. Non-TCP ports are skipped.
3. Port assignment: choose a first local port (default 10000, minimum 1024). Ports are assigned in order and skip ports in use.

Press enter on the last step to save (or print, with --dry-run), b to go back, esc to cancel.

The --dry-run output has this form (example values):

[dry-run] Would add 2 forwards to .kportal.yaml
  10000 → my-cluster/default/service/api:8080
  10001 → my-cluster/default/service/postgres:5432

Shell completion

kportal completion --shell zsh            # print the script
kportal completion --shell zsh --install  # install it
kportal completion --uninstall            # remove it

Without --shell, kportal detects the shell. Supported shells: bash, zsh, fish.

Status indicators

Indicator	Meaning
● Active	Connection healthy
○ Starting	First connection. Failed health checks show Starting for the first 10s.
◐ Reconnecting	Reconnecting after a failure
✗ Error	Connection failed
○ Disabled	Turned off in the UI

Advanced features

HTTP traffic logging

Press l on a forward that has httpLog set.

forwards:
  - resource: service/api
    port: 8080
    localPort: 8080
    httpLog:
      enabled: true
      includeHeaders: true   # sensitive values are redacted
      maxBodySize: 65536     # bytes
      filterPath: "/api/"    # log only paths containing this text
      logFile: "api.log"     # also append entries to this file

maxBodySize defaults to 1 MB (1048576 bytes) when you omit it or set a value of 0 or less.

List view columns: TIME, METHOD, STATUS, LATENCY, PATH.

Key	Action
Up Down	Move
Enter	Open details
g / G	Top / bottom
a	Toggle auto-scroll
f	Cycle filter: All, Non-2xx, Errors
/	Search path or method
c	Clear filters
q	Close

The detail view shows sorted request and response headers, bodies and timing. JSON bodies are pretty-printed, gzip and deflate bodies are decoded, and binary bodies show a placeholder.

Key	Action
Up Down / PgUp PgDn	Scroll
g	Top
c	Copy the response body
Esc / q / Enter	Back to the list

Sensitive header redaction

With includeHeaders: true, kportal replaces these header values with [REDACTED] and keeps the name: Authorization, Cookie, Set-Cookie, X-Api-Key, X-Auth-Token, X-Csrf-Token, Proxy-Authorization, X-Access-Token, and any name containing token, secret, password or apikey (any case). You cannot turn this off. Source: internal/httplog/proxy.go.

Benchmarking

Press b on a forward. Set the URL path (default /), the HTTP method, the concurrency and the request count. The wizard starts at 10 workers and 100 requests.

The results screen has this layout (x.xx marks a measured value):

Total Requests:  100
Successful:      100 (100.0%)
Failed:          0

Latency (ms)
  Min:    x.xx
  Max:    x.xx
  Avg:    x.xx
  P50:    x.xx
  P95:    x.xx
  P99:    x.xx

Throughput
  Requests/sec:  x.xx
  Bytes read:    n

Status Codes
  200: n

Only 2xx responses count as successful.

Hot reload

kportal reloads when the config file changes. To reload by hand:

kill -HUP $(pgrep kportal)

New forwards start, removed forwards stop and unchanged forwards keep running. An invalid config is rejected and the previous one stays active.

Port conflict detection

kportal checks that local ports are free at startup and on reload. The report names the process that holds a busy port. kportal finds it with lsof on Linux and macOS and tasklist on Windows. A reload that would bind a busy port is rejected and the previous config stays active.

Conflicts are only reported between forwards that can run together. See Select contexts.

Retry strategy

Exponential backoff with 10% jitter: 1s, 2s, 4s, 8s, then 10s (cap). Retries continue until the connection succeeds.

Migration from kftray

kportal --convert configs.json --convert-output .kportal.yaml

-convert-output defaults to .kportal.yaml.

Signal handling

Signal	Effect
Ctrl+C, SIGTERM	Graceful shutdown
SIGHUP	Reload the configuration

Troubleshooting

Port already in use:

lsof -i :<port>
kill <pid>

Connection refused:

1. Check the pod: kubectl get pods -n <namespace>
2. Check the port: kubectl describe pod <pod>
3. Check the service endpoints: kubectl get endpoints <service>

Context not found: list your contexts with kubectl config get-contexts. kportal reports context <name> not found in kubeconfig when a contexts[].name value is not in your kubeconfig. Names with @, ., : or / (for example admin@home or an EKS ARN) are valid. If --context reports unknown context, the name is missing from contexts[].name in the config file.

The add wizard shows a namespace prompt instead of a list: the cluster refused or returned an empty namespace list. Type the namespace name.

Development

Requires Go 1.26 or later, kubectl and access to a cluster.

make build    # build the binary
make test     # run tests
make all      # fmt, vet, staticcheck, test
make install  # install locally

See CONTRIBUTING.md for guidelines. Release history is in CHANGELOG.md.

Telemetry

On startup kportal sends one anonymous adoption ping: project name, version and timestamp. It has a 2-second timeout and cannot block startup.

To opt out, set DO_NOT_TRACK=1, OSS_TELEMETRY_DISABLED=1 or KPORTAL_DISABLE_TELEMETRY=1. See oss-telemetry for the wire format and source.

License

MIT. See LICENSE.

Credits

Bubble Tea, Lipgloss, client-go. kftray was the inspiration.

Links

• Website
• Issues
• Releases
