kportal

kportal runs many Kubernetes port-forwards from one YAML file and shows their status in a terminal UI. It reconnects dropped forwards, reloads the file when it changes, and can run without the UI.

Website: https://lukaszraczylo.github.io/kportal

Features

Area	What kportal does
Forwards	Forwards to service/<name>, pod/<name> (exact name or name prefix), or pod with a label selector. Only TCP is supported.

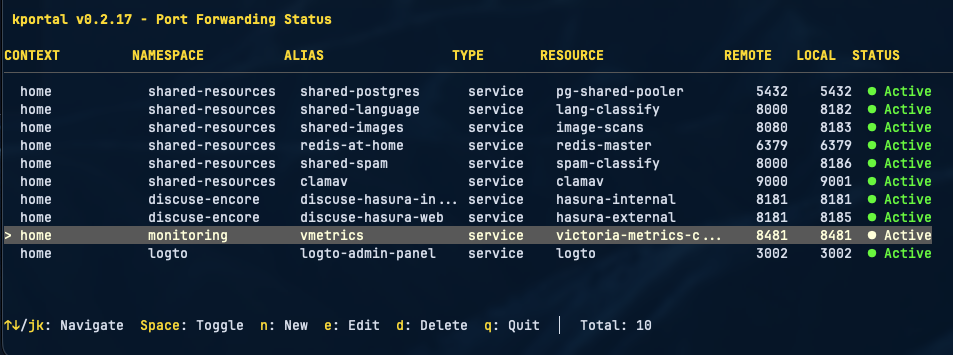

Terminal UI	Add (n), edit (e), delete (d) and toggle (Space) forwards without a restart. The add wizard writes the config file.
Table columns	tui.columns sets which columns the forwards table shows, their order and their width. It applies to the UI and to the -verbose table.
Add wizard	If the cluster does not allow listing namespaces, the wizard asks you to type the namespace.
Reconnect	Retries with exponential backoff: 1s, 2s, 4s, 8s, then 10s, with 10% jitter. It does not stop retrying.
Pod restarts	Forwards by pod prefix or selector connect to a new pod after a restart.
Health checks	tcp-dial or data-transfer check every 3s by default. A connection is stale when it is older than maxConnectionAge and idle, or idle longer than maxIdleTime.
Hot reload	The file watcher and SIGHUP reload the config. An invalid config is rejected and the previous one stays active.
Contexts	Several Kubernetes contexts and namespaces in one file.
Port conflicts	Startup and reload checks report a busy local port and the process that holds it.
mDNS	With mdns.enabled: true, each forward is reachable as <alias>.local. Without an alias, the resource name is used.
HTTP log	Per-forward request and response log in the UI, with detail view, filter, search, JSON formatting, gzip/deflate decoding and clipboard copy. Header values such as Authorization and Cookie are redacted.
Benchmark	Press b to send HTTP requests through a forward. Reports success and failure counts, min/max/avg latency, P50/P95/P99, requests per second and status codes.
Generate	kportal generate lists services in a cluster and appends the ones you pick to the config with consecutive local ports.
Headless	-headless runs without the UI and logs to stderr. -log-format json switches the log format.
Import	--convert turns a kftray JSON file into a kportal YAML file.
Shell completion	kportal completion prints a bash, zsh or fish completion script, or installs it.
Updates	-update checks for a newer release. -version prints the version.

Install

Homebrew (macOS):

brew install --cask lukaszraczylo/taps/kportal

If you installed the formula (brew install lukaszraczylo/taps/kportal) earlier, run brew uninstall kportal first.

Install script:

curl -fsSL https://raw.githubusercontent.com/lukaszraczylo/kportal/main/install.sh | bash

The script downloads kportal-<version>-checksums.txt from the same release and verifies the archive SHA-256. If cosign is on PATH, it also verifies the keyless signature of the checksums file.

Variable	Effect
DRY_RUN=1	Download and verify only. Do not install.
SKIP_COSIGN=1	Skip the cosign check. The SHA-256 check still runs.

Manual download: the releases page has archives for Linux, macOS and Windows on amd64 and arm64.

Build from source (Go 1.26 or later, see go.mod):

git clone https://github.com/lukaszraczylo/kportal.git
cd kportal
make build && make install

Verify a release signature

# Download the checksums file and its sigstore bundle from the release
cosign verify-blob \
  --certificate-identity-regexp "^https://github\.com/lukaszraczylo/shared-actions/\.github/workflows/go-release\.yaml@refs/heads/main$" \
  --certificate-oidc-issuer "https://token.actions.githubusercontent.com" \
  --bundle "kportal-<version>-checksums.txt.sigstore.json" \
  kportal-<version>-checksums.txt

Quick start

Create .kportal.yaml:

contexts:
  - name: production
    namespaces:
      - name: backend
        forwards:
          - resource: service/postgres
            protocol: tcp
            port: 5432
            localPort: 5432
            alias: prod-db

          - resource: service/api
            protocol: tcp
            port: 8080
            localPort: 8080
            alias: api
            httpLog: true

Run:

kportal

CLI

Command or flag	Effect
kportal	Start the terminal UI.
-c <file>	Config file. Default .kportal.yaml.
-v	Verbose logging. In headless mode it sets the log level only.
-headless	No UI. Logs go to stderr.
-check	Validate the config and exit.
-context <name>	Forward only the named contexts. See Select contexts.
-log-format text|json	Log format. Default text.
-convert <file>	Convert a kftray JSON file to kportal YAML.
-convert-output <file>	Output of -convert. Default .kportal.yaml.
-update	Check for updates and exit.
-version	Print the version and exit.
kportal generate	Add forwards from a cluster. See Generate.
kportal completion	Print a shell completion script.

Each flag also accepts the double-dash form, for example --check.

Headless example:

kportal -headless -v 2>kportal.log &

Completion:

kportal completion --shell zsh            # print the script
kportal completion --shell zsh --install  # install it
kportal completion --uninstall            # remove it

Without --shell, kportal detects the shell.

Select contexts

By default kportal forwards every context in the file. --context limits the run to the contexts you name:

kportal --context development-team-a
kportal --context team-a --context team-b
kportal --context team-a,team-b

An unknown name is an error that lists the contexts in the file. Those are the contexts[].name values in .kportal.yaml, not every context in your kubeconfig.

Local-port conflicts are only reported between forwards that can run together. With --context, contexts you never select together can reuse a localPort:

contexts:
  - name: development-team-a
    namespaces:
      - name: rate-service
        forwards:
          - &rate-service
            resource: pod/rpc-server
            protocol: tcp
            port: 50051
            localPort: 3004
            alias: rate-service

  - name: development-team-b
    namespaces:
      - name: rate-service
        forwards:
          - <<: *rate-service   # same local port, no conflict

Without --context, or with both contexts named, the duplicate port is an error.

Generate forwards from a cluster

kportal generate --context=my-cluster
kportal generate --context=my-cluster --config=/path/to/.kportal.yaml
kportal generate --context=my-cluster --dry-run

Flag	Description
--context	Required. Kubernetes context to scan.
--config	Config file to append to. Default .kportal.yaml.
--dry-run	Print the planned forwards. Do not change the config.

Steps:

1. Namespaces: select with space, toggle all with a, filter with /.
2. Services: same keys. Services already in the config are locked. Non-TCP ports are skipped.
3. Port assignment: choose a first local port (default 10000, minimum 1024). Ports are assigned in order and skip ports in use.

Press enter on the last step to save (or print, with --dry-run), b to go back, esc to cancel.

Keys

Forwards list:

Key	Action
Up Down / j k	Move the selection
PgUp PgDn / Ctrl+u Ctrl+d	Move by 10 rows
Space / Enter	Toggle the forward
n	Add a forward
e	Edit the forward
d	Delete the forward (asks to confirm)
b	Benchmark the forward
l	Open the HTTP log
q / Ctrl+c	Quit

In the add and edit wizard, h on the confirmation step toggles httpLog. Advanced httpLog keys you set in YAML stay unchanged.

Status values:

Indicator	Meaning
● Active	Connection healthy
○ Starting	First connection. Failed health checks show Starting for the first 10s.
◐ Reconnecting	Reconnecting after a failure
✗ Error	Connection failed
○ Disabled	Turned off in the UI

Configuration

Forwards

contexts:
  - name: <context-name>
    namespaces:
      - name: <namespace-name>
        forwards:
          - resource: <type>/<name>
            protocol: tcp
            port: <remote-port>
            localPort: <local-port>
            alias: <display-name>      # optional
            selector: <label-selector> # optional
            httpLog: true              # optional

Field	Required	Description
resource	Yes	service/<name>, pod/<name>, or pod with selector
protocol	No	tcp. No other value is accepted.
port	Yes	Remote port
localPort	Yes	Local port
alias	No	Display name and mDNS hostname
selector	With bare pod	Label selector. Not allowed with pod/<name>.
httpLog	No	true, or a map of options (see HTTP log)

Health checks and reliability

healthCheck:
  interval: "3s"
  timeout: "2s"
  method: "data-transfer"  # or tcp-dial
  maxConnectionAge: "25m"
  maxIdleTime: "10m"

reliability:
  tcpKeepalive: "30s"
  dialTimeout: "30s"
  retryOnStale: true
  watchdogPeriod: "30s"

The values above are the defaults from .kportal.yaml.

• tcp-dial opens a TCP connection to the local port.
• data-transfer also tries to read data through the tunnel. It is the default.
• A connection past maxConnectionAge reconnects only when it is also idle, so a running transfer is not cut.

mDNS

mdns:
  enabled: true

• alias: prod-db publishes prod-db.local.
• Without an alias, service/redis publishes redis.local.
• A bare pod with a selector and no alias is not published.

Check registration:

dns-sd -B _kportal._tcp local       # macOS
avahi-browse -t _kportal._tcp       # Linux

Table columns

tui:
  columns:
    - name: alias
      width: 30      # optional, 1-200
    - name: resource
    - name: local
    - name: status

• Valid names: context, namespace, alias, type, resource, remote, local, status.
• List order is render order. Unlisted columns are hidden.
• width is the maximum text width, 1 to 200. Without it, the column keeps its default width.
• Without tui, the table keeps its default columns and order.
• The setting applies to the UI and to the -verbose table, and reloads with the file.

HTTP log

Press l on a forward that has httpLog set.

forwards:
  - resource: service/api
    port: 8080
    localPort: 8080
    httpLog:
      enabled: true
      includeHeaders: true   # sensitive values are redacted
      maxBodySize: 65536     # bytes, 0 = unlimited
      filterPath: "/api/"    # log only paths containing this text
      logFile: "api.log"     # also append entries to this file

List view columns: TIME, METHOD, STATUS, LATENCY, PATH.

Key	Action
Up Down	Move
Enter	Open details
g / G	Top / bottom
a	Toggle auto-scroll
f	Cycle filter: All, Non-2xx, Errors
/	Search path or method
c	Clear filters
q	Close

Detail view shows sorted request and response headers, bodies and timing. JSON bodies are pretty-printed, gzip and deflate bodies are decoded, and binary bodies show a placeholder.

Key	Action
Up Down / PgUp PgDn	Scroll
g	Top
c	Copy response body
Esc / q / Enter	Back to the list

With includeHeaders: true, kportal replaces these header values with [REDACTED] and keeps the name: Authorization, Cookie, Set-Cookie, X-Api-Key, X-Auth-Token, X-Csrf-Token, Proxy-Authorization, X-Access-Token, and any name containing token, secret, password or apikey. This cannot be turned off.

Benchmark

Press b on a forward. Set the URL path (default /), HTTP method, concurrency and request count.

Reload

kportal reloads when the config file changes. To reload by hand:

kill -HUP $(pgrep kportal)

Ctrl+C and SIGTERM shut down cleanly.

Import from kftray

kportal --convert configs.json --convert-output .kportal.yaml

Troubleshooting

Port already in use:

lsof -i :<port>
kill <pid>

Connection refused:

1. Check the pod: kubectl get pods -n <namespace>
2. Check the port: kubectl describe pod <pod>
3. Check the service endpoints: kubectl get endpoints <service>

Context not found: list your contexts with kubectl config get-contexts. Names with @, ., : or / (for example admin@home or an EKS ARN) are valid. If --context reports unknown context "...", the name is missing from contexts[].name in the config file.

The add wizard shows a namespace prompt instead of a list: the cluster refused or returned an empty namespace list. Type the namespace name.

Development

Requires Go 1.26 or later, kubectl and access to a cluster.

make build    # build the binary
make test     # run tests
make all      # fmt, vet, staticcheck, test
make install  # install locally

See CONTRIBUTING.md for guidelines. Release history is in CHANGELOG.md.

Telemetry

On startup kportal sends one anonymous adoption ping: project name, version and timestamp. It has a 2-second timeout and cannot block startup.

To opt out, set DO_NOT_TRACK=1, OSS_TELEMETRY_DISABLED=1 or KPORTAL_DISABLE_TELEMETRY=1. See oss-telemetry for the wire format and source.

License

MIT. See LICENSE.

Credits

Bubble Tea, Lipgloss, client-go. kftray was the inspiration.
